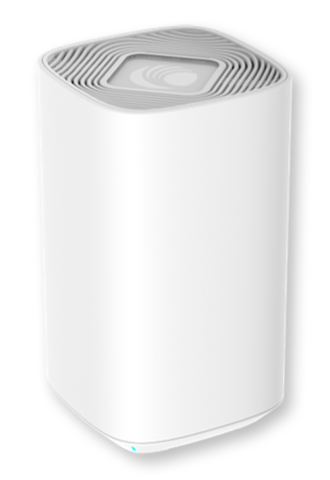

RV22 Wi-Fi Home Mesh Router
The RV22 Wi-Fi 6 Home Mesh Router has a highly efficient antenna to provide better whole-home coverage and higher throughputs at range.

Features:

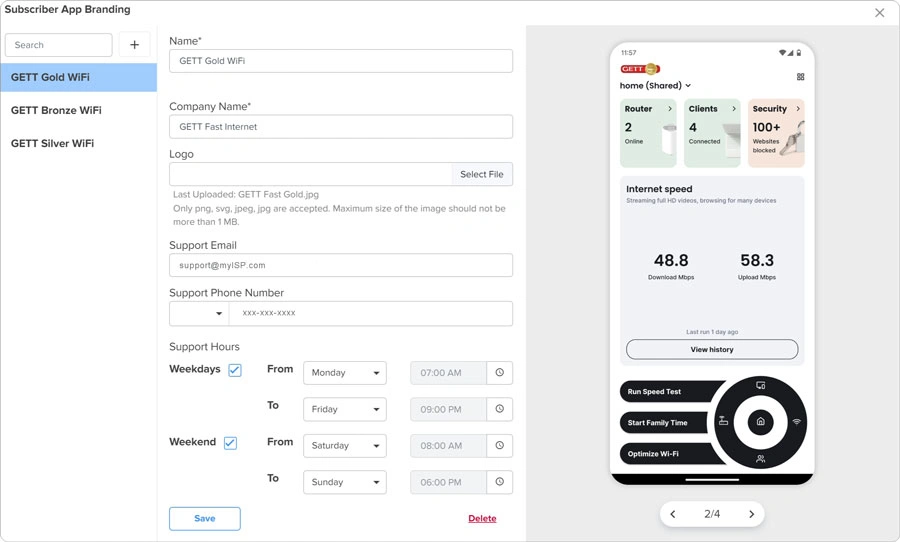

Subscriber and Service Workflows

cnMaestro subscriber workflows allow the provider to create a service and link it to a person and a site. Multiple services can be created in cnMaestro with each service including custom logos, service names, support contacts, and support hours. Use the service tool to create multiple levels of service with unique branding and information.

Automatic Mesh

Start with a single managed Wi-Fi 6 RV22 Home Mesh Router and add mesh nodes, if needed, to cover large homes, difficult construction types, and/or RF blocking construction materials, such as brick or concrete.

cnMaestro cloud management system informs the mesh router to look for mesh nodes. Discovery and setup are automatic. A blinking LED on the mesh node guides the subscriber to the optimal site location for the mesh node—not too close and not too far from the mesh router. The result is multi-gigabit, symmetrical mesh links delivering a great experience throughout the home

High-Power Radio Delivers Performance. Optimized Wireless Makes It Work.

Whether using a single RV22 to cover a small home or apartment or using RV22 mesh nodes for a large home, it starts with a great RF signal. High-gain radios paired with high-efficiency antennas provide outstanding client and mesh connections. Mesh-to-mesh links range from symmetrical 1.2 Gbps to 2.4 Gbps

Frequency Coordination

Cambium’s fixed wireless subscriber modules are designed to avoid interference from the home Wi-Fi. But home Wi-Fi must remain standards-based to support the varied consumer devices that will connect.

Optimize RF

Upon bootup and any time the Optimize Wi-Fi command is executed, the RV22 scans channels, measures utilization, and decides whether a channel change is required. Run Optimize Wi-Fi from the Response Center* or Subscriber App.

Benefits:

Specifications:

Standards
802.11ax, up to 3x3:2. 20/40/80/160 MHz, 802.11a/b/g/n/ac wave 2, MU-OFDMA, MU-MIMO, TWT, MIMO, VHT MCS rates, 16/64/256/1024/4096-QAM, Transmit Beam steering, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM. IEEE 802.11d/e/h/i/k/r/u/v/w
Access Point Specifications
FCC	Ch 1–11, 36–64, 100–144, 149–165
ISED	Ch 1–11, 36–64, 100–116, 149–165
ETSI	Ch 1–13, 36–64, 100–140, 149–165
ROW*	Ch 1–14, 36–64, 100–144, 149–173 *Individual country limits may apply
Antenna Type	Internal, vertically polarized
Antenna Gain	5 GHz: up to 5 dBi 2.4 GHz: up to 5 dBi
Conducted Tx Power	5 GHz 3x3:2 radio: 25.7 dBm 2.4 GHz 2x2:2 radio: 24 dBm
Radios	5 GHz: 802.11a/n/ac/ax, 3x3:2 2.4 GHz: 802.11 b/g/n/ax, 2x2:2
Power	12VDC, 1.2A DC power jack 2.5mm x 5.5mm CP
MAX PHY Rate	5 GHz radio: 2.4 Gbps 2.4 GHz radio: 600 Mbps
Physical	100mm x 100mm x 175mm, 400g Multicolor status LED
Environmental	0°C - +40°C ambient op temp 0°C - +70°C storage temperature 10% to 90% RH non-condensing
Ports	4 x IEEE 10/100/1000 Mbps Ethernet
Certifications	FCC, CE, AU, NZ, UK
WLAN & Network Specifications
Licensing	Requires RV22 device subscription for use in a cnMaestro Essentials or cnMaestro X account
Router-to-Internet Speed Test	Automatically runs after the subscriber tests App-to-internet speed. Manual test can be initiated in the Response Center.* Scheduled tests configured in the Subscriber workflow.
WLAN Security	64 clients, 2 SSIDs Open, WPA2 PSK, 802.11w PMF
Mesh	Automatic discovery and setup. Continuous mesh quality monitor with LED indicator. CAF2-Compliant
Speed Test (CAF2)	Subscriber random selection, tests, and report for CAF2-compliant network tests (not available at first release)
Mesh Modes	Mesh star, mesh linear, or wired mesh. Not compatible with Cambium enterprise Wi-Fi APs.
App-to-Internet Speed Test	Initiated from the dashboard tool on the Subscriber App. Test history is shown in the App and detailed data reported in Response Center.*
RF Management	Auto-RF with auto-channel selection and frequency coordination with FWA subscriber module. RF monitor with CHN utilization/noise/RF interference/errors
Subscriber App Tools	Web content filter Family time Speed test Optimize Wi-Fi Guest Wi-Fi Manage multiple sites Invite family members to manage Dashboard view of network, devices, security events
Network	NAT logging firewall/router, DHCP/DNS server
Band Steering	Yes
Subscriber QoS	WMM
Fast Roaming	802.11r
DNS Filter	Auto, manual, and proxy (default mode). DOH will be blocked; DNS over UDP will be used.

Documentation:

Download the RV22 Wi-Fi Home Mesh Router (.PDF)
