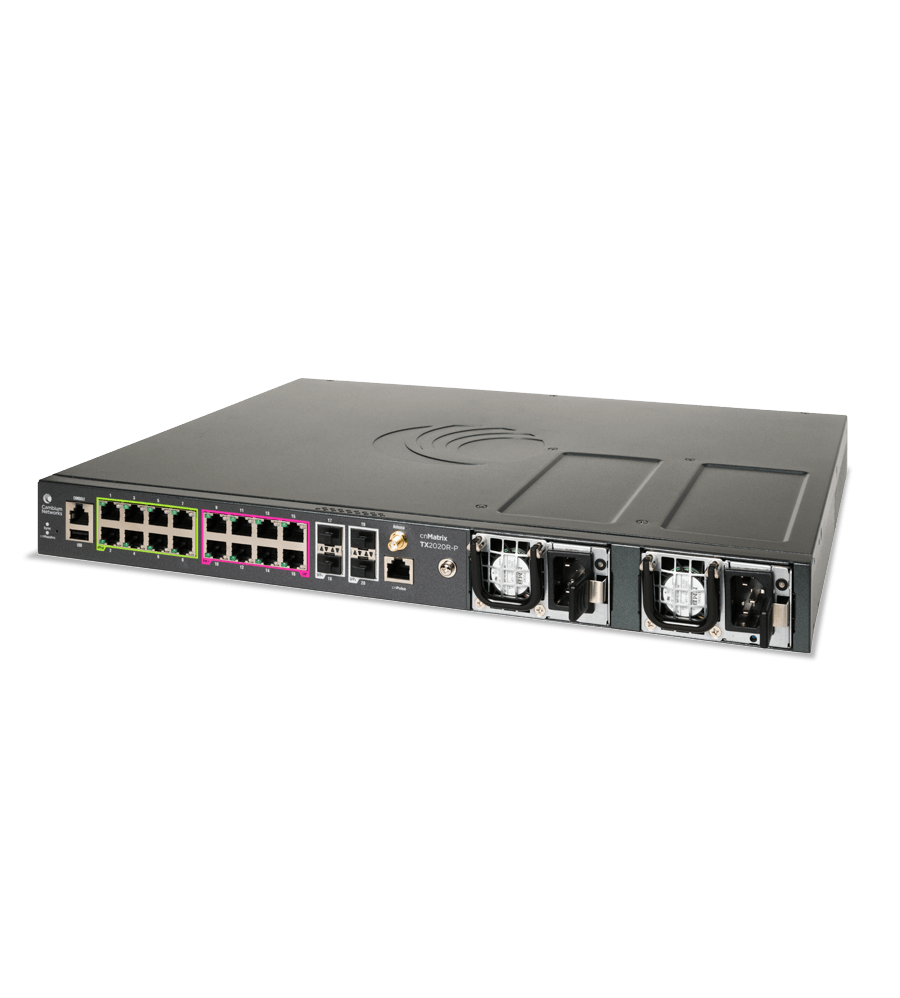

Cambium Networks cnMatrix TX2020R-P
Provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
The cnMatrix series of fully managed switches delivers full Layer 2 capabilities with enhanced access security. These switches come with a 5-Year Limited Lifetime Warranty.
- Easy and simple, free cloud (or on premise) management with cnMaestro™
- Zero-touch deployment of switches makes installation easy
- Enhanced Security with automated device profiling and segmentation
- Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
- Unified Wired-Wireless access solution
The cnMatrix series of fully managed switches delivers full Layer2 and Layer 3 capabilities with enhanced access security. cnMatrix switches deliver power savings with several models offering fanless operation. The cnMatrix switch series offers flexibility with 4 - 10 Gbps (SFP+) uplinks on the 28 port models while offering 2 - 1Gbps (SFP) uplink ports on the 10 port models.
Key Features
- Cloud-managed, fully non-blocking enterprise-grade L2/L3 switching
- Simple, free cloud or on-premise management via cnMaestro™
- Zero-touch deployment dramatically reduces installation time
- Policy-Based Automation eliminates manual configuration errors
- Unified wired and wireless access with cnPilot™ Wi-Fi integration
- Enhanced security through automated device profiling and segmentation
- Intelligent PoE supporting 802.3af/at/bt and high-power devices up to 90W
- Dual redundant removable AC/DC power supplies for high availability
- Cambium Sync support with redundant GPS and cnPulse timing sources
- Site survivability ensures uninterrupted operation during cloud outages
- Lower total cost of ownership compared to traditional enterprise switches
Specifications
| Switch Type | Cloud-Managed, Non-Blocking, Enterprise Grade L2/L3 Switch |
| Throughput | 96 Gbps – 128 Gbps (model dependent) |
| Forwarding Rate (64 Byte Packets) | 120 Mpps |
| RJ45 Ports (10/100/1000 Mbps) | 8 / 16 ports (model dependent) |
| 1G Fiber Ports (SFP) | Up to 8 (model dependent) |
| 10G Fiber Uplinks (SFP+) | 4 × SFP+ |
| PoE Standards | 802.3af / at / bt (up to 90W per port) |
| Passive PoE Support | 24V (up to 15W), 54V (up to 90W) |
| PoE Power Budget | CRPS dependent (600W / 930W / 1200W AC or DC) |
| Power Supply | Dual redundant removable CRPS (AC or DC) |
| Max Switch Power (with traffic) | 38.88W – 46.98W (model dependent) |
| MTBF | 202,977 – 393,648 hours |
| CPU Speed | 800 MHz |
| Memory | 512 MB DRAM, 128 MB Flash |
| MAC Address Table | 16K |
| VLAN Support | 4K VLANs, QinQ supported |
| Operating Temperature | -10°C to 65°C |
| Warranty | 3-Year Limited Lifetime Warranty |
Documentation:
Download the cambium networks cnmatrix TX20000 series switches datasheet (.pdf)
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
Our Price: Request a Quote
