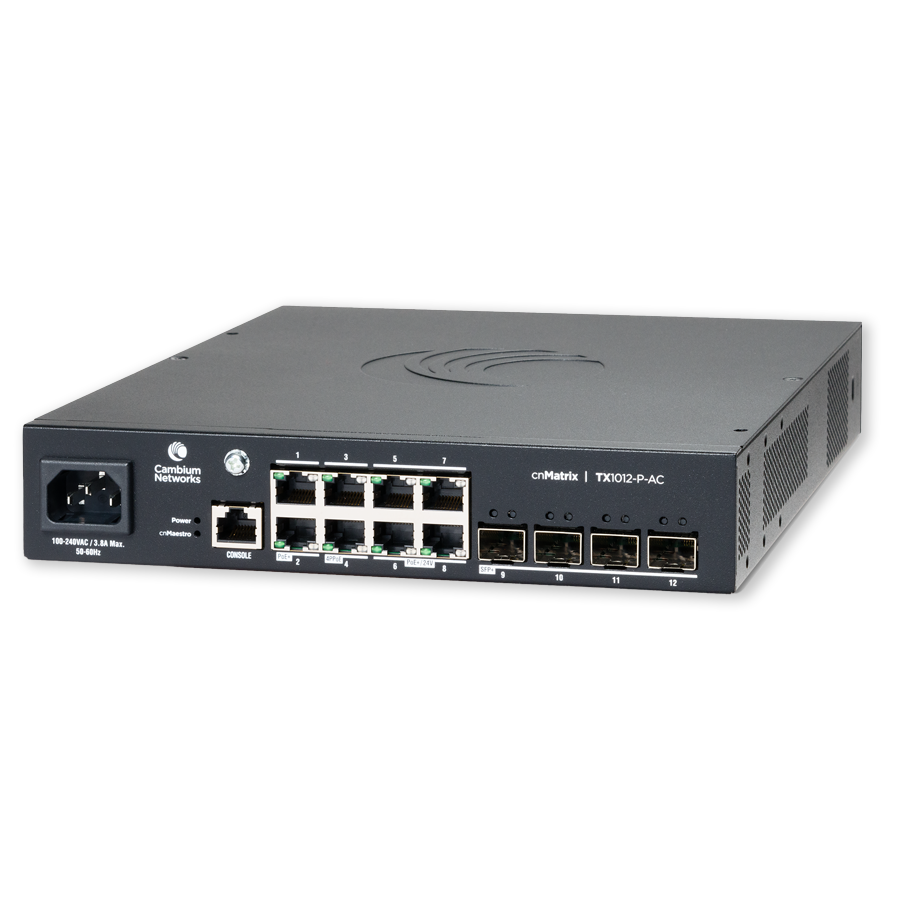

Cambium Networks cnMatrix TX1012-P-AC
cnMatrix TX provides Wireless ISP operators a non-blocking, fully managed,

Cambium Networks cnMatrix TX1012-P-AC

Cambium Networks Products

cnMatrix TX1012-P-AC

Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance.

#TX1012-P-AC
Our Price: Request a Quote

Get a Quote

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.

The cnMatrix series of fully managed switches delivers full Layer 2 capabilities with enhanced access security. These switches come with a 5-Year Limited Lifetime Warranty.

Easy and simple, free cloud (or on premise) management with cnMaestro™
Zero-touch deployment of switches makes installation easy
Enhanced Security with automated device profiling and segmentation
Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
Unified Wired-Wireless access solution

The cnMatrix series of fully managed switches delivers full Layer2 and Layer 3 capabilities with enhanced access security. cnMatrix switches deliver power savings with several models offering fanless operation. The cnMatrix switch series offers flexibility with 4 - 10 Gbps (SFP+) uplinks on the 28 port models while offering 2 - 1Gbps (SFP) uplink ports on the 10 port models.

Key Features & Benefits

cnMatrix Platform Benefits

Full line-rate, non-blocking switch architecture for consistent high performance
Easy and simple management using the free cnMaestro™ cloud or on-premise platform, or XMS*
Zero-touch deployment simplifies switch installation and reduces setup time
Policy-Based Automation eliminates manual and time-consuming configuration tasks
Enhanced security through automated device profiling and network segmentation
Automated configuration during adds, moves, and changes of network devices
Unified wired and wireless access solution for simplified network operations

* Feature to be included in a future release.

cnMatrix TX Series Additional Capabilities

Comprehensive and intelligent Power over Ethernet (PoE) support
IEEE 802.3af / 802.3at / 802.3bt PoE support up to 90W
24V Passive PoE support up to 15W
54V Passive PoE support up to 90W
Available with either AC or DC power supply options
All network interfaces conveniently located on the front panel

Enterprise-Grade Switching

The cnMatrix series of fully managed switches delivers advanced Layer 2 and Layer 3 functionality with enhanced access security. Flexible uplink options using SFP+ (10 Gbps) or SFP (1 Gbps) ports enable scalable and high-performance enterprise and service provider deployments.

Specifications

System Specifications

Feature	TX1012-AC-P	TX1012-DC-P
Throughput	96 Gbps	96 Gbps
Forwarding Rate (64 Byte Packets)	120 Mpps	120 Mpps
10/100/1000 Mbps RJ45 Ports	8	8
1 Gbps Fiber Ports (SFP)	0	0
10 Gbps Fiber Ports (SFP+)	4	4
PoE+ Enabled Ports (802.3af/at/bt)	8	8
Low Voltage Passive PoE (24V)	4	4
High Power Passive PoE (up to 90W)	2	2
Serial Console	Yes	Yes
Rack Mount Kit	Optional	Optional
Internal Fans	1	1
Reset Button*	Yes	Yes
MAC Address Table	16K	16K
Flash Storage	128 MB	128 MB
DRAM	512 MB	512 MB
VLANs	4K	4K
QinQ*	Yes	Yes
LACP / Trunking	8 LAGs / 8 links per LAG	8 LAGs / 8 links per LAG
QoS Priority Queues	8	8
PVRST	32	32
Ingress / Egress ACL	128	128
Static ARP Entries	512	512
ARP Entries	512	512
Static Routes	64	64
Dynamic Routing Entries	512	512
IGMP Multicast Groups	256	256
Policy Based Automation	Yes	Yes
