Cambium Networks Enterprise Wi-Fi 6 XV2-23T
Cambium Networks Products

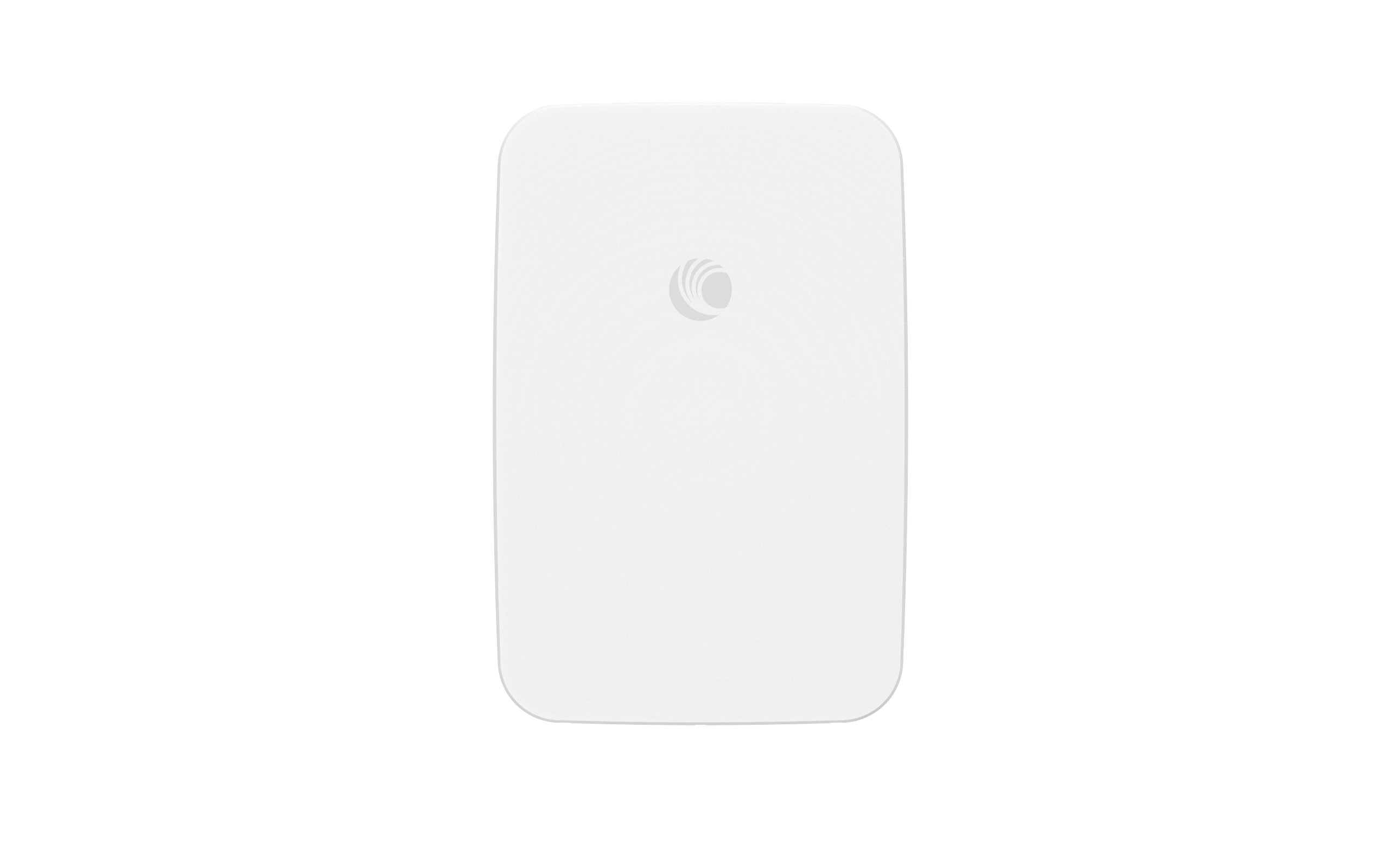

Enterprise Wi-Fi 6 XV2-23T
XV2-23T Outdoor Dual radio WiFi 6 AP, 2x2, 2.5 GbE, IP67, US
#XV2-23T0A00-US
Our Price: Request a Quote
Our Price: Request a Quote
XV2-23T Outdoor Dual radio WiFi 6 AP, 2x2, 2.5 GbE, IP67, EU
#XV2-23T0A00-EU
Our Price: Request a Quote
Our Price: Request a Quote
XV2-23T Outdoor Dual radio WiFi 6 AP, 2x2, 2.5 GbE, IP67, RW
#XV2-23T0A00-RW
Our Price: Request a Quote
Our Price: Request a Quote
XV2-23T Outdoor Dual radio WiFi 6 AP, 2x2, 2.5 GbE, IP67, CA
#XV2-23T0A00-CA
Our Price: Request a Quote
Our Price: Request a Quote
N000000L142A PoE injector, 60W, 5 GbE, Outdoor, Energy Level 6 Supply
#N000000L142A
Our Price: Request a Quote
Our Price: Request a Quote
N000000L034B PoE, 30.5W, 56V, GbE DC Injector, Outdoor, Energy Level 6 Supply, accepts C5 connector
#N000000L034B
Our Price: Request a Quote
Our Price: Request a Quote
N000900L017A PoE, 15.4W, 56V, GbE DC Injector, Outdoor, Energy Level 6 Supply, accepts C5 connector
#N000900L017A
Our Price: Request a Quote
Our Price: Request a Quote
Overview:
Value tier Wi-Fi for any market
The Cambium Networks XV2-23T Wi-Fi 6 Outdoor access point delivers a high performance to price ratio attractive to any market. The XV2-23T can be onboarded and managed by your choice Cambium management systems - cnMaestro X or cnMaestro Essentials (either cloud-based or on-premises), or the Swift mobile app. Choose the management type you need and change it at any time. Unlike other value-tier access points, the XV2-23T is never locked into just one management selection.
Designed for fast installation
The XV2-23T offers multiple installation methods included in the same shipping box. Mount the AP to a pole using the included clamps, or to a flat surface using the integrated bracket. The XV2-23T is a compact size and high performance outdoor Wi-Fi 6 access point
Features:
Specifications:
| Access Point Specifications | XV2-23T |
|---|---|
| Regional Wi-Fi Bands |
FCC: Ch 1–11, 36–64, 100–144, 149–165 ISED: Ch 1–11, 36–64, 100–116, 149–165 ETSI: Ch 1–13, 36–64, 100–140 ROW: Individual country limits apply. Please contact sales for country specific regulations. Note: FCC, IC, EU DFS channels not supported in first release. |
| Radios |
5 GHz: 802.11 a/n/ac/ax, 2x2 2.4 GHz: 802.11 b/g/n/ax, 2x2 |
| Wi-Fi Standard | 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open |
| Max PHY Rate |
5 GHz radio: 2,402 Mbps 2.4 GHz radio: 573.5 Mbps |
| Ports | 1 × IEEE 100/1000 Mbps Ethernet |
| Antenna |
5 GHz: 10 dBi Omni 2.4 GHz: 7 dBi Omni |
| Max EIRP |
5 GHz: 36 dBm 2.4 GHz: 34 dBm EIRP may be limited by country regulations. |
| LTE Filter Band | Band 38, 40 |
| Power | Typical 11W, 802.3af powered device |
| Dimensions | 300 mm × 200 mm × 84 mm (11.8 in × 7.9 in × 3.3 in) |
| Weight | 1,220 g (2.69 lbs) |
| Security | Kensington lock slot |
| LEDs | Multi-color status LEDs |
| Ambient Operating Temperature | -40ºC to 65ºC (-40ºF to 149ºF) |
| Storage Temperature | -40ºC to 70ºC (-40ºF to 158ºF) |
| Humidity | 95% RH non-condensing |
| MTBF |
5,077,102 hours @ 25ºC 1,224,983 hours @ 65ºC |
| Mount Options |
Pole or wall mounting Pole diameter: MIN 30 mm / MAX 75 mm |
| Certifications (Compliance) |
Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, PP2.0 FCC, CE, IC, IEC60950, IEC62368, EN50121, EN61373 |
| Network Specifications | XV2-23T |
|---|---|
| Operational Modes |
Standalone Cloud managed cnMaestro or VM |
| WLAN |
256 clients, 16 SSIDs WPA-TKIP, WPA2 AES, 802.1x, 802.11w PMF |
| Authentication / Encryption |
Hotspot 2.0, 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS, MAC authentication to local database or RADIUS |
| Accounting | RADIUS accounting, multiple AAA |
| Scheduled WLAN | WLAN On/off by day, week, time of day |
| Guest Access |
EasyPass guest self-registration, guest Ambassador, ePSK, Vouchers, Rate Limit, Splash page hosted on AP or cnMaestro Client isolation per SSID, per network |
| Data Limit | Client limit per SSID |
| Subscriber QoS | WMM |
| Fast Roaming | 802.11r, OKC, Enhanced roaming |
| Mesh | Multi-hop, either band |
| Channel Selection | Multi-modal channel selection with AutoChannel, Autotune (cnMaestro) |
| RF Management |
Multi-Modal RF optimization supporting AutoRF (cnMaestro) performed in the intelligent edge AP. Out-of-band RF spectrum analysis, RF monitor with chn/noise/interference |
| Network |
LACP (802.3ad), TCP connection log, NAT logging firewall, DHCP server, L2, L3 or DNS based access control, VLAN Pooling, RADIUS attribute VID, VLAN per SSID per user |
| Band Steer / Load Balance | Yes |
| Tunnel | L2TP, L2oGRE, PPPoE |
| Network & RF Management Tools | Wired and wireless remote packet capture, logging, ZapD |
| Services |
L2–L7 application visibility & control, WiFi Calling control, WIDs/WIPs, NTP, Syslog, SNMP traps, DNS proxy, auto-off on WAN failure |
| API |
RESTful management and statistics API Presence location APIs |
| IP | IPv4, IPv6 |
Documentation:
Download the cambium networks Enterprise Wi-Fi 6 XV2-23T datasheet (.pdf)
