N550 900MHz
The cnReach N550 900 MHz narrowband fixed wireless
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
cnReach™ helps bridge the IT/OT sides of complex organizations.
Adaptive modulation and access point synchronization reduce self-interference and enable scalability in dense environments.

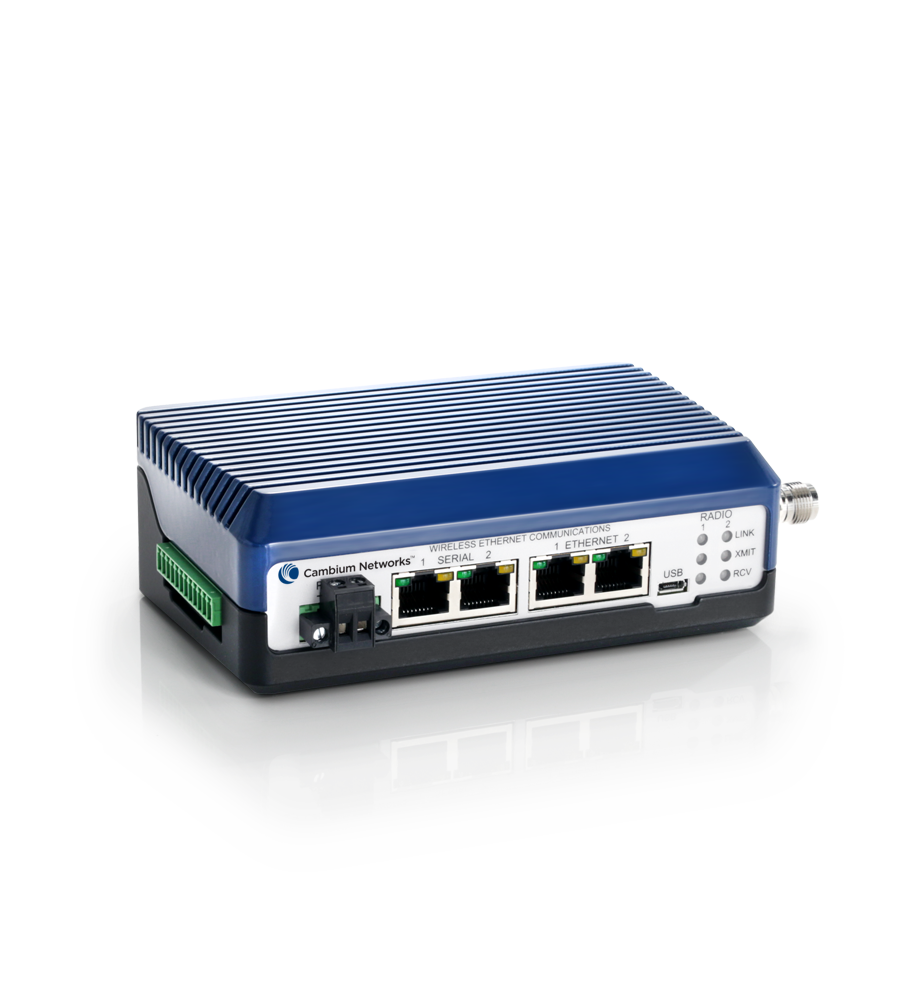

The cnReach N550 900 MHz narrowband fixed wireless radio can be configured for either licensed MAS or unlicensed ISM operation and with extensive I/O eases the migration to a reliable all-IP network.
Features:
- Licensed 900 MHz (also available: 220 MHz, 450 MHz, 700 MHz, and 1400 MHz licensed options)
- Secure communications with AES 128/256-bit encryption with password authentication
- Highly reliable communications with access point synchronization and adaptive modulation
- Single- and dual-radio configurations for advanced back-to-back relay and store-and-forward applications
- Extensive I/O capabilities easing the transition from serial to all-IP networks with multiple serial ports, Ethernet ports, and analog/digital I/O built-in
- Sophisticated network planning with LINKPlanner, a no-charge planning tool enabling network designers to predict both capacity and availability of networks crossing all of Cambium’s technologies
- Supported by cnMaestro™ software for monitoring the status of entire networks carrying traffic across sensors
- Fully compatible and interoperable with N500 900 MHz radios
Benefits:
Specifications:
| Radio Performance | |
|---|---|
| Frequency Range ISM Mode | 902–928 MHz (915–928 MHz in Australia) |
| Frequency Range MAS Mode | 928–960 MHz |
| Output TX Power ISM Mode | 10 mW to 1 W (10 dBm to 30 dBm) |
| Output TX Power MAS Mode | 10 mW to 4 W (10 dBm to 36 dBm) |
| Step Size | 50 mW |
| Modulations ISM Mode | MSK / 2FSK / BPSK / QPSK / 8PSK / 16PSK / 16QAM / 32QAM |
| Modulations MAS Mode | MSK / 4FSK / QPSK / 8PSK / 16QAM / 32QAM / 64QAM |
| Capacity ISM Mode | 57 kbps up to 4.4 Mbps |
| Capacity MAS Mode | 10 kbps up to 210 kbps |
| Channel Bandwidths ISM Mode | FHSS: 76 / 154 / 207 / 310 kHz DTS: 600 / 1200 kHz |
| Channel Bandwidths MAS Mode | 12.5 / 25 / 50 kHz |
| Range | Up to 110 km / 70 miles |
| Data Capabilities | |
| Packet Handling | Layer 2 bridge, Layer 3 static routes, VLAN support |
| Data Encryption | 128/256-bit AES |
| Management | |
| Web-based Interface via HTTP/HTTPS | |
| Remote Management via SNMP | |
| cnMaestro™ integration | |
| LINKPlanner | |
| Support for configuration files, remote software upgrades | |
| Built-in diagnostic tools via web interface such as RF Ping and RF throughput | |
| Interfaces | |
| Ethernet Interfaces | 2 x RJ-45, 10/100BaseT, Full duplex, rate auto negotiated (802.3 compliant) |
| Serial Interfaces | 2 x RJ-45, RS-232/422/485, up to 230.4 kbps |
| Physical | |
| Dimensions | 168 x 876 x 466 mm (6.625 x 3.45 x 1.835 in) |
| Weight: Single-Radio Configuration | 0.70 kg (1.54 lb) |
| Weight: Dual-Radio Configuration | 0.73 kg (1.61 lb) |
| DIN Rail Mount | Optional |
| Environmental | |
| Operating Temperature | -40ºC to 75ºC (-40ºF to 167ºF) |
| Humidity | 95% operating humidity @ 60ºC non-condensing |
Documentation:
Download the N550 900MHz (.PDF)
