Cambium Networks Enterprise Wi-Fi 6 XV2-2
Cambium Networks Products
Enterprise Wi-Fi 6 XV2-2
XV2-2 Dual-Radio Wi-Fi 6. Indoor (FCC) SDR 802.11ax 2x2, US
#XV2-2X00A00-US
Our Price: Request a Quote
Our Price: Request a Quote
XV2-2 Dual-Radio Wi-Fi 6. Indoor (IC) 802.11ax 2x2, CA
#XV2-2X00A00-CA
Our Price: Request a Quote
Our Price: Request a Quote
XV2-2 Dual-Radio Wi-Fi 6. Indoor (ETSI) 802.11ax 2x2, EU
#XV2-2X00A00-EU
Our Price: Request a Quote
Our Price: Request a Quote
XV2-2 Dual-Radio Wi-Fi 6. Indoor 802.11ax 2x2, RW
#XV2-2X00A00-RW
Our Price: Request a Quote
Our Price: Request a Quote
PoE, 60W, 56V, 5GbE DC Injector, Indoor, Energy Level 6 Supply, accepts C5 connector
#N000000L142A
Our Price: Request a Quote
Our Price: Request a Quote
AC line cord, EU Type F angled, 720 mm, C5 connector
#N000900L032A
Our Price: Request a Quote
Our Price: Request a Quote
AC line cord, UK Type G angled, 720 mm, C5 connector
#N000900L033A
Our Price: Request a Quote
Our Price: Request a Quote
AC line cord, IN Type D angled, 720 mm, C5 connector
#N000900L012A
Our Price: Request a Quote
Our Price: Request a Quote
AC line cord, ZA Type M angled, 720 mm, C5 connector
#N000900L048A
Our Price: Request a Quote
Our Price: Request a Quote
Overview:
Wi-Fi 6 Designed for Mobile Devices and IoT

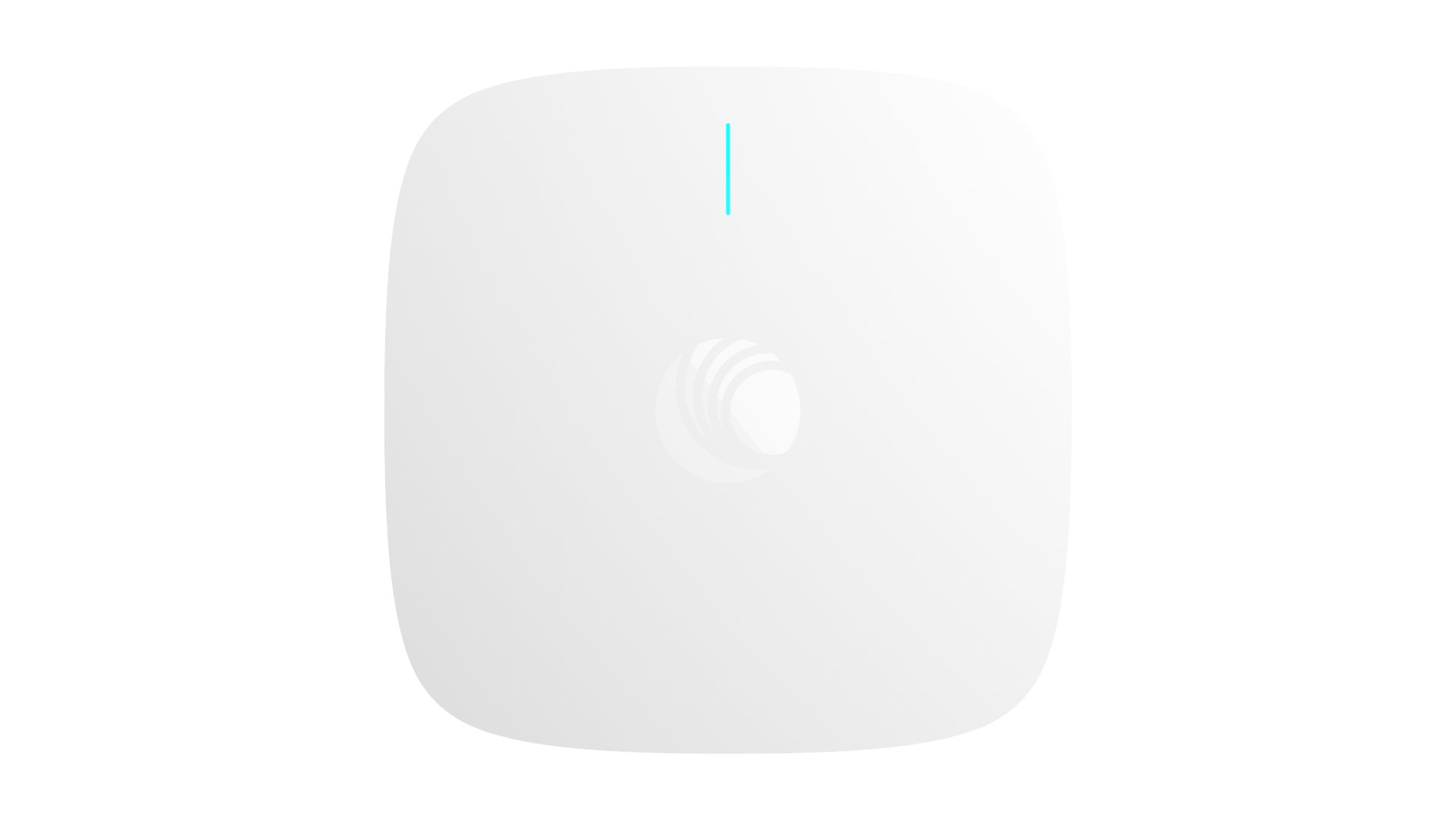

The XV2-2 is a dual-radio Wi-Fi 6 access point (AP) designed to deliver next generation networks with edge services at a value-based price. Wi-Fi 6 technology delivers higher network speeds and enables more connected devices at higher packet quality. Wi-Fi 6 brings a deterministic model to the radio frequency (RF) layer where the AP controls the client connections, including when to sleep, when to wake and how to transmit and receive packets. The XV2-2 is fully backward compatible with existing Wi-Fi technology and enables a massive growth of low power, low-bitrate IoT devices to add infrastructure intelligence into any market.
XV2-2 comes with Limited Lifetime Warranty providing return and repair service on the access point from date of purchase until end of life of the product
Cloud and on-premises management
XV2-2 continues the enterprise network convergence with edge-intelligent AP managed by application-intelligent Cambium Networks XMS or cnMaestroTM management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.
Features:
Specifications:
| Access Point Specifications | XV2-23T |
|---|---|
| Regional Wi-Fi Bands |
FCC: Ch 1–11, 36–48, 100–144, 149–165 ISED: Ch 1–11, 36–48, 100–116, 149–165 ETSI: Ch 1–13, 36–64, 100–140 ROW: Ch 1–14, 36–64, 100–144, 149–173 Individual country limits may apply. |
| Radios |
5 GHz: 802.11 a/n/ac Wave 2/ax, 2×2 2.4 GHz: 802.11 b/g/n/ax, 2×2 |
| Wi-Fi Standard | 802.11 a/b/g/n/ac Wave 2/ax |
| SSID Security | WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), WEP, Open |
| Max PHY Rate |
5 GHz radio: 1,201 Mbps 2.4 GHz radio: 573.5 Mbps |
| Ports |
1 × IEEE 10/100/1000/2500 Mbps Auto Sensing MDIX 1 × USB 2.0 |
| Antenna |
5 GHz: 6 dBi Omni 2.4 GHz: 5 dBi Omni |
| Max EIRP |
5 GHz: 31 dBm 2.4 GHz: 29 dBm |
| Power |
Max power: 21W (802.3at powered device) 15.4W (802.3af) operation with reduced function settings Typical: 11W (USB disabled) |
| Dimensions (mm / in) | 195 × 195 × 41.4 mm (7.67 × 7.67 × 1.63) |
| Weight | 800 g (1.76 lbs) |
| Security | Kensington lock slot |
| LEDs | Multi-color status LEDs |
| Ambient Operating Temperature | 0ºC to 50ºC (32ºF to 122ºF) |
| Storage Temperature | -40ºC to 70ºC (-40ºF to 158ºF) |
| Humidity | 95% RH non-condensing |
| MTBF |
4,514,013 hours @ 25ºC ambient 1,314,841 hours @ 50ºC ambient |
| Mount Options |
Wall or ceiling T-bar with included locking bracket Ceiling tile plate |
| Certifications (Compliance) |
Wi-Fi Alliance 802.11 a/b/g/n/ac/ax FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity IEC 61373 Railway Shock & Vibration UL 2043 Plenum, EN 62311 Human Safety/RF Exposure WEEE & RoHS |
| Management & Network Features | XV2-23T |
|---|---|
| Operational Modes |
Standalone Cloud managed via cnMaestro or VM Cloud managed via XMS |
| WLAN |
1024 concurrent clients per Access Point 32 SSIDs (16 SSIDs per radio) WPA3, WPA3-SAE, WPA3-Enterprise, WPA-TKIP, WPA2-AES, 802.1x, 802.11w PMF |
| Authentication & Encryption |
802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS |
| Scheduled WLAN | On/off by day, week, or time of day |
| Guest Access | See “Captive Portal” section for additional details |
| Data Limit | Client bitrate, time, and throughput limit per SSID |
| Subscriber QoS | WMM |
| VLAN |
802.11Q Max 4096 VLANs |
| Fast Roaming | 802.11r, OKC, cnMaestro assisted roam |
| Sticky Client | Enhanced roaming with configurable thresholds |
| Mesh | Multi-hop, either band |
| Channel Selection |
Multimodal channel selection with AutoChannel and AutoBand Granular control of off-channel scan and channel selection |
| RF Management |
Multimodal RF optimization supporting AutoCell performed in the intelligent edge AP Out-of-band RF spectrum analysis Radio self-test network assurance RF monitor with channel/noise/interference analysis Data rate pruning and minimum data rate configuration |
| Network |
TCP connection log NAT logging firewall DHCP server L2, L3 or DNS-based access control VLAN Pooling RADIUS attribute VID VLAN per SSID per user |
| Band Steer / Load Balance | Yes |
| Tunneling | L2TPv2, L2GRE, PPPoE |
| Network & RF Management Tools |
Wired and wireless remote packet capture ZapD performance tool Rogue AP detection |
| Services |
NTP, Syslog, WIDs/WIPs, SNMP traps, DNS proxy Auto-off on WAN failure |
Documentation:
Download the cambium networks Enterprise Wi-Fi 6 XV2-2 datasheet (.pdf)
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
