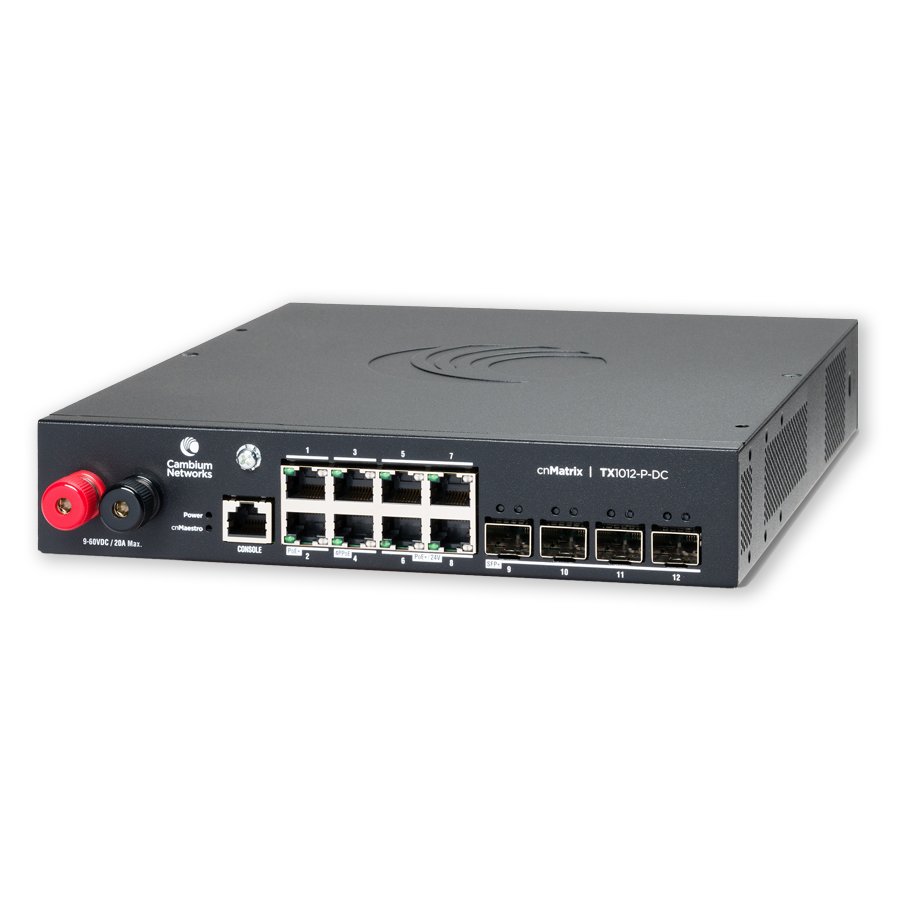

cnMatrix TX1012-P-DC Switch
Cambium Networks Products
cnMatrix TX1012-P-DC
Enterprise grade L2/L3 switch portfolio, 802.3af/at/bt – up to 90W
Overview:
Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
The cnMatrix platform of switches provides:
- Full Line Rate, non-blocking architecture
- Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
- Unified Wired-Wireless access solution
The cnMatrix series of fully managed switches delivers full Layer 2 capabilities with enhanced access security. These switches come with a 5-Year Limited Lifetime Warranty
Features:
The cnMatrix platform of switches provides:
Comprehensive/Intelligent PoE solution
- 802.3af/at/bt – up to 90W
- 24V Passive PoE – up to 15W
- 54V Passive PoE – up to 90W
Available with either AC or DC power supply
All interfaces located on front panel
Specifications:
| Specification |
TX1012-AC-P |
TX1012-DC-P |
| Throughput | 96 Gbps | 96 Gbps |
| Forwarding Rate in Mpps (64 Byte Packets) | 120 | 120 |
| 10/100/1000 Mbps RJ45 Ports | 8 | 8 |
| 1 Gbps Fiber Ports (SFP) | 0 | 0 |
| 10 Gbps Fiber Ports (SFP+) | 4 | 4 |
| PoE+ Enabled Ports (802.3af/at/bt) | 8 | 8 |
| Low Voltage Passive PoE (24V) | 4 | 4 |
| High Power 4PPoE (up to 90W) | 2 | 2 |
| Serial Console | Yes | Yes |
| Rack Mount Kit | Yes, optional | Yes, optional |
| Internal Fans | 1 | 1 |
| Reset Button | Yes | Yes |
| MAC Address Table Size | 16K | 16K |
| Flash Storage | 128 MB | 128 MB |
| DRAM | 512 MB | 512 MB |
| VLANs | 4K | 4K |
| QinQ | Yes | Yes |
| LACP/Trunking | 8 LAGs/8 links per LAG | 8 LAGs/8 links per LAG |
| QoS Priority Queues | 8 | 8 |
| PVRST | 32 | 32 |
| Ingress/Egress ACL | 128 | 128 |
| Static ARP Entries | 512 | 512 |
| ARP Entries | 512 | 512 |
| Static Routes | 64 | 64 |
| Dynamic Routing | 512 | 512 |
| IGMP Multicast Groups | 256 | 256 |
| Policy Based Automation | Yes | Yes |
