Cambium Networks PTP 850EX
Millimeter Wave Radio

Cambium Networks PTP 850EX

Cambium Networks Products
PTP Series
PTP 850EX Radio, 10Gbps, Lo, TX 71-76GHz, RX 81-86GHz, without License keys
#C800085B007A
Our Price: Request a Quote
Get a Quote
PTP 850EX Radio, 10Gbps, Hi, TX 81-86GHz, RX 71-76GHz, without License keys
#C800085B008A
Our Price: Request a Quote
Get a Quote
PTP 850EX Keyed Radio, with Act Keys, 10Gbps, Lo, TX 71-76GHz, RX 81-86GHz
#C800085B009A
Our Price: Request a Quote
Get a Quote
PTP 850EX Keyed Radio, with Act Keys, 10Gbps, Hi, TX 81-86GHz, RX 71-76GHz
#C800085B010A
Our Price: Request a Quote
Get a Quote

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

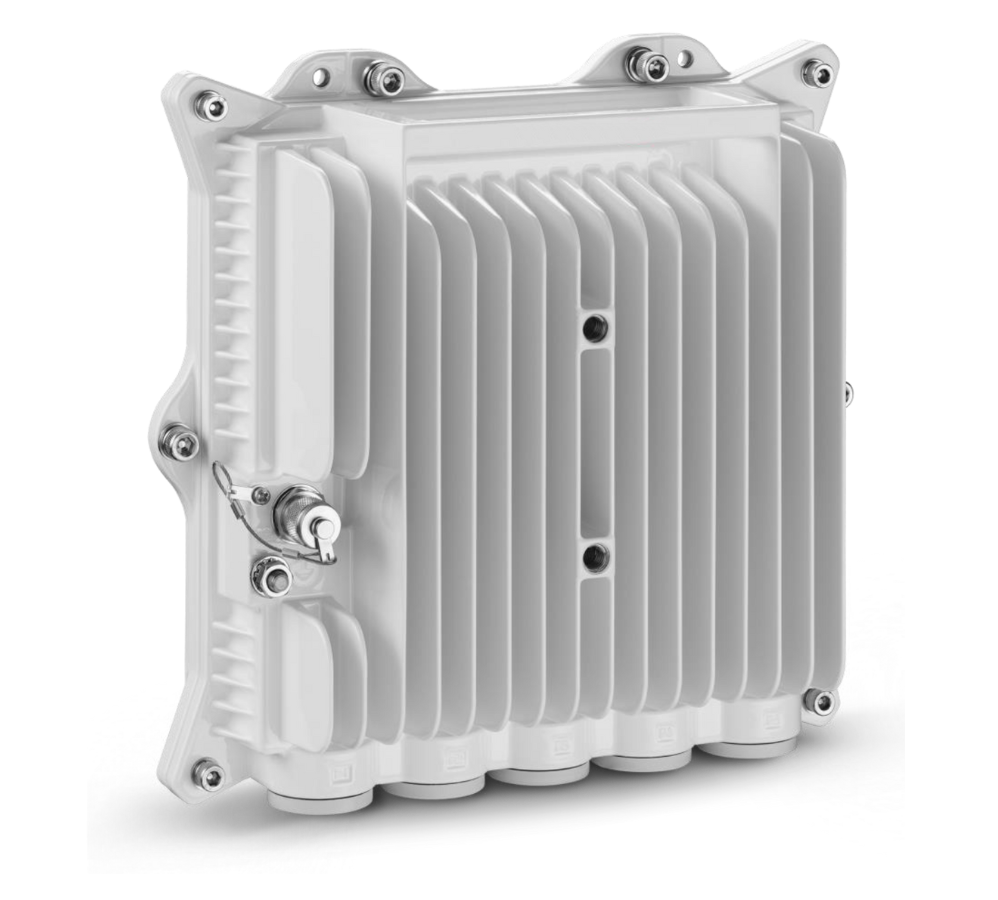

PTP 850EX Millimeter Wave Radio

PTP 850EX E-band Radio, an ultrahigh capacity, all-outdoor Ethernet backhaul operating in the E-band (71‒86 GHz). PTP 850EX supports 250, 500, 1000, and 2000 MHz channels with BPSK to 1024 QAM and delivers up to 10 Gbps capacity in 1+0 configuration.

Features:

Radio

  • 71-76 GHz, 81-86 GHz
  • 1+0, 2+0*, 1+1 (XPIC)*
  • Multiband with PTP 820C, PTPC HP, PTP 820S, or third-party microwave radio
  • BPSK to 1024 QAM with hitless ACMB
  • ATPC*
  • Adaptive bandwidth notification (EOAM)*

Ethernet

  • Port 1: DC port
  • Port 2: RJ45, 1 GE/management/PoE
  • Port 3: SFP28 - 1/2.5/10/25 GbE
  • Port 4: SFP28 - 1/2.5/10/25 GbE
  • Port 5: QSFP
  • MTU – 9612 Bytes
  • 4K VLAN add/remove/translate
  • Y.1731 Ethernet OAM

Technical Specifications

  • Dimensions (Direct Mount): 228 mm x 233 mm x 76 mm
  • Weight: 2.77 kg
  • -40°C to +55°C (-40°F to +131°F)
  • Standard Input: -48 VDC
  • DC Input range: -40.5 to -60 VDC
  • Power Redundancy: Use both DC power input and passive PoE injector simultaneously

Documentation:

Download the cambium networks ptp 850ex datasheet (.pdf)

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Pricing Notes:

Cambium Networks Products
PTP Series
PTP 850EX Radio, 10Gbps, Lo, TX 71-76GHz, RX 81-86GHz, without License keys
#C800085B007A
Our Price: Request a Quote
Get a Quote
PTP 850EX Radio, 10Gbps, Hi, TX 81-86GHz, RX 71-76GHz, without License keys
#C800085B008A
Our Price: Request a Quote
Get a Quote
PTP 850EX Keyed Radio, with Act Keys, 10Gbps, Lo, TX 71-76GHz, RX 81-86GHz
#C800085B009A
Our Price: Request a Quote
Get a Quote
PTP 850EX Keyed Radio, with Act Keys, 10Gbps, Hi, TX 81-86GHz, RX 71-76GHz
#C800085B010A
Our Price: Request a Quote
Get a Quote
