Overview:

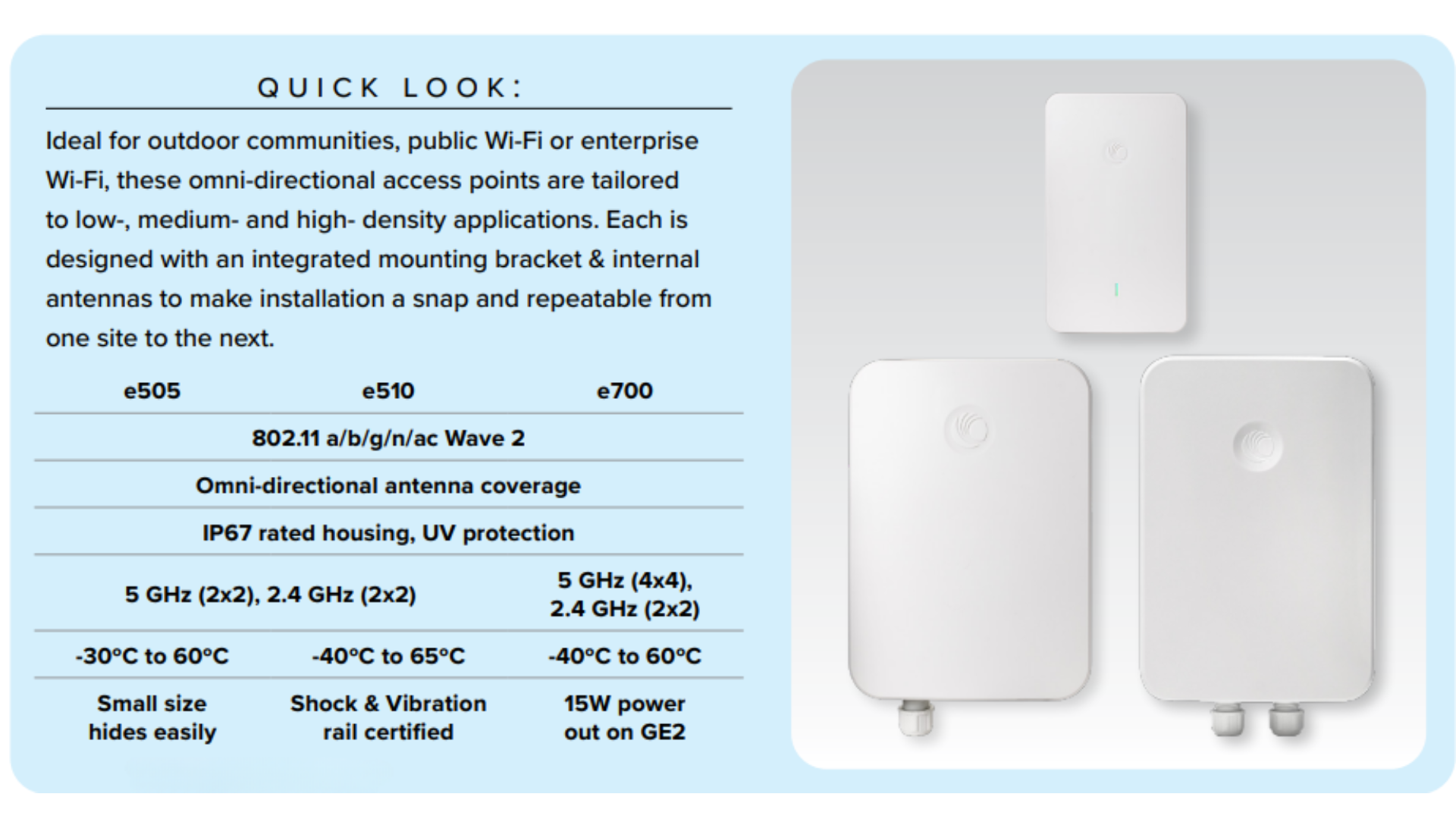

FLEXIBLE DESIGN FOR OUTDOOR ENTERPRISE WI-FI
The e505 is designed for fast, discrete deployment of outdoor Wi-Fi, ideal for an aesthetically sensitive area like a hotel pool, or unobtrusive public and community Wi-Fi. The e505 has an omni coverage internal antenna with an integrated mounting bracket
The e510 is rail shock and vibration certified, and includes extended surge and ESD protection. Additionally, an integrated LTE filter reduces impact from nearby LTE frequencies. Operating temperature spans -40ºC to 65ºC for a wide range of applications.

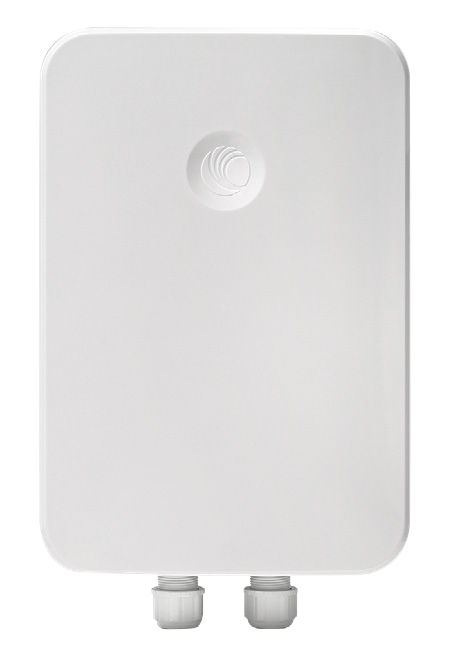

The e700 provides edge intelligent services and the 4x4 MU-MIMO antenna array to deliver those services. The dual-gigabit Ethernet ports support link aggregation (LAG) for higher throughput needs, or GE2 can be enabled to deliver 15 W of operating power for a Cambium subscriber module or any Ethernet- and PoE-powered device.
CLOUD-MANAGED ACCESS
All cnPilot access points are managed by cnMaestro from the cloud, an on-premises VM or a private datacenter. cnMaestro provides a single-pane-of-glass dashboard for Wi-Fi, Ethernet, fixed wireless broadband and service provider home routers.
- Zero-touch onboarding
- Inventory reports, mass configuration and upgrade
- Dashboard views with alarms and key performance metrics
- Remote troubleshooting tools
- Hierarchical device organization
- Cloud-managed guest portal with social login, vouchers, rate, time and throughput limits
cnMaestro Essential cloud management is included at no additional cost. There are no setup fees, license, or recurring costs. cnMaestro includes detailed network statistics, channel utilization graphs, and integrated remote troubleshooting tools to ensure service is always on.
Features:
Specifications:
| e505 | e510 | e700 | |
|---|---|---|---|
| Wi-Fi Bands (Regional) |
US-FCC / ISED Canada / EU-ETSI / ROW Ch 1–11, 36–64, 100–140, 149–165 individual country limits apply |
US-FCC / ISED Canada / EU-ETSI / ROW Ch 1–11, 36–64, 100–116, 149–165 individual country limits apply |
US-FCC / ISED Canada / EU-ETSI / ROW Ch 1–13, 36–64, 100–144, 149–173 individual country limits apply |
| Radios | 1×5 GHz (802.11a/n/ac Wave 2), 2×2 1×2.4 GHz (802.11b/g/n), 2×2 |
1×5 GHz (802.11a/n/ac Wave 2), 2×2 1×2.4 GHz (802.11b/g/n), 2×2 |
1×5 GHz (802.11a/n/ac Wave 2), 2×2 1×2.4 GHz (802.11b/g/n), 2×2 |
| Wi-Fi Standard | 802.11 a/b/g/n/ac | 802.11 a/b/g/n/ac | 802.11 a/b/g/n/ac |
| SSID Security | WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open | ||
| Max PHY Rate | 2.4 GHz: 300 Mbps 5 GHz: 867 Mbps |
2.4 GHz: 400 Mbps 5 GHz: 867 Mbps |
2.4 GHz: 400 Mbps 5 GHz: 1733 Mbps |
| Ethernet | 1 Gigabit Port, PoE Out | 1 Gigabit Port, PoE Out | 2 Gigabit Ports, PoE Out |
| Antenna | Internal Omni 2.4 GHz 5 dBi / 5 GHz 5 dBi | Internal Omni 2.4 GHz 8 dBi / 5 GHz 9 dBi | Internal Omni 2.4 GHz 8 dBi / 5 GHz 8 dBi |
| Max EIRP | 2.4 GHz: 26 dBm 5 GHz: 26 dBm |
2.4 GHz: 32 dBm 5 GHz: 34.5 dBm |
2.4 GHz: 33 dBm 5 GHz: 36 dBm |
| Clients / SSIDs | 100 clients, 32 SSIDs | 256 clients, 32 SSIDs | 512 clients, 32 SSIDs |
| Power | 802.3af/at Typical 8 W, Max 12 W |
802.3af/at Typical 10 W, Max 12.95 W |
802.3at / 60 W Injector Typical 18 W, Max 25 W |
| Mounting | Pole / Wall Mount | Pole / Wall Mount | Pole (38–76 mm) / Wall Mount |
| Dimensions (mm / in) | 227×130×70 (8.94×5.12×2.76) | 290×208×78 (11.32×8.19×3.07) | 315×215×66 (12.4×8.46×2.6) |
| Weight | 800 g (1.76 lb) | 1100 g (2.43 lb) | 1700 g (3.75 lb) |
| Temperature Range | -30 °C to 60 °C | -40 °C to 65 °C | -40 °C to 65 °C |
| Certifications | FCC, ETSI, CE, EN 60601-1-2, UL2043, Wi-Fi Alliance Passpoint 2.0 |
FCC, ETSI, CE, EN 60601-1-2, UL2043, Wi-Fi Alliance Passpoint 2.0 |
FCC, ETSI, CE, EN 60601-1-2, UL2043, Wi-Fi Alliance Passpoint 2.0 |
Documentation:
Download the cambium networks Enterprise Wi-Fi e700 datasheet (.pdf)
