Cambium Networks Enterprise Wi-Fi 6 XV2-22H
Cambium Networks Products

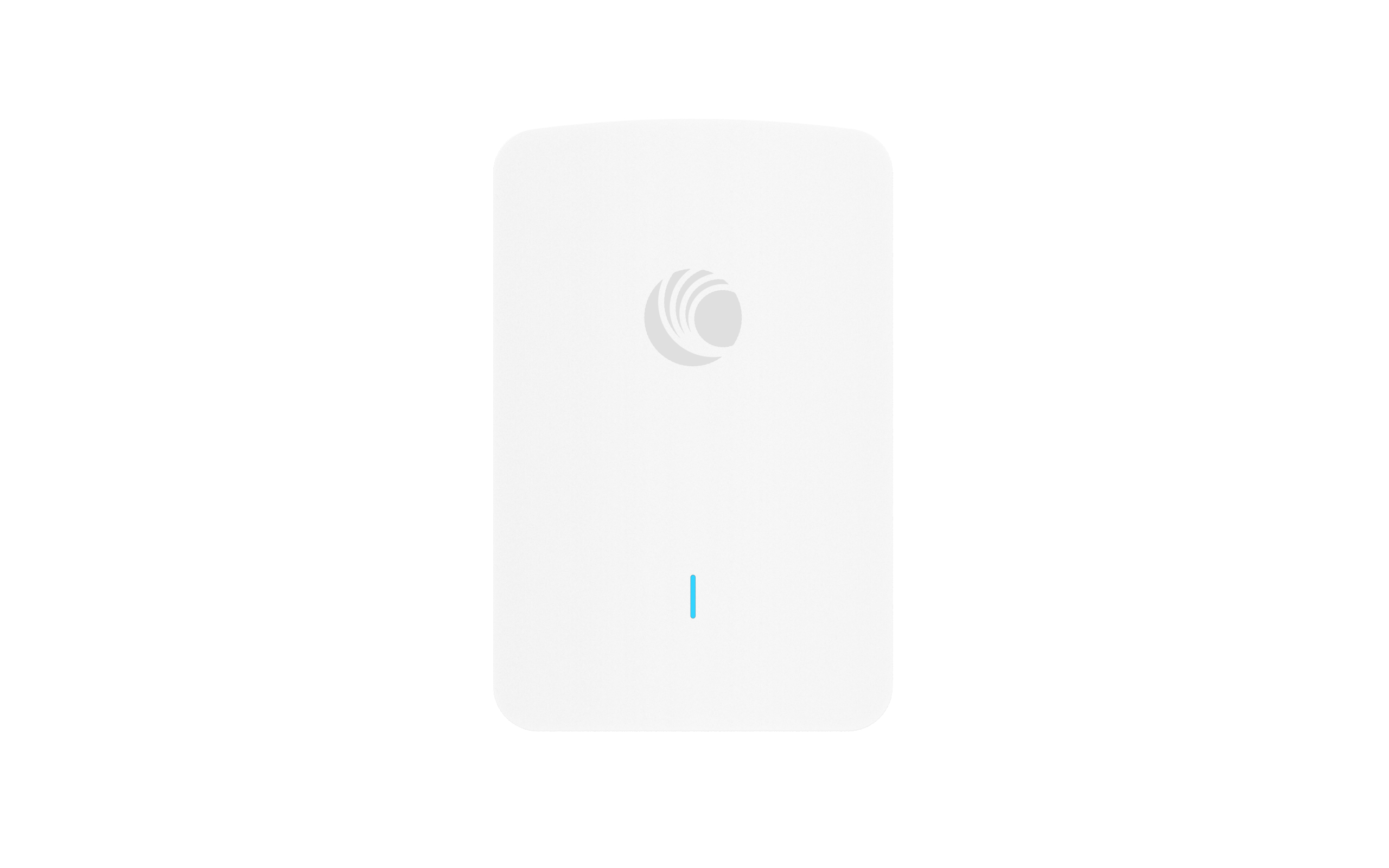

Enterprise Wi-Fi 6 XV2-22H
XV2-22H Wi-Fi 6 Wall Plate Access Point, dual-radio, 2x2, 3 x GbE, 48V PoE, BLE/Zigbee/Thread (ROW)
#XV2-22H0A00-RW
Our Price: Request a Quote
Our Price: Request a Quote
XV2-22H Wi-Fi 6 Wall Plate Access Point, dual-radio, 2x2, 3 x GbE, 48V PoE, BLE/Zigbee/Thread (US)
#XV2-22H0A00-US
Our Price: Request a Quote
Our Price: Request a Quote
XV2-22H Wi-Fi 6 Wall Plate Access Point, dual-radio, 2x2, 3 x GbE, 48V PoE, BLE/Zigbee/Thread (Canada)
#XV2-22H0A00-CA
Our Price: Request a Quote
Our Price: Request a Quote
XV2-22H Wi-Fi 6 Wall Plate Access Point, dual-radio, 2x2, 3 x GbE, 48V PoE, BLE/Zigbee/Thread (EU)
#XV2-22H0A00-EU
Our Price: Request a Quote
Our Price: Request a Quote
PoE Injector, 60W, 5 GbE, Indoor, Energy Level 6 Supply
#N000000L142A
Our Price: Request a Quote
Our Price: Request a Quote
PoE Injector, 30.5W, 56V, GbE DC, Indoor, Energy Level 6 Supply, accepts C5 connector
#N000000L034B
Our Price: Request a Quote
Our Price: Request a Quote
PoE Injector, 15.4W, 56V, GbE DC, Indoor, Energy Level 6 Supply, accepts C5 connector
#N000900L017A
Our Price: Request a Quote
Our Price: Request a Quote
Mounting Adapter – mounts XV2-22H to a flush surface
#PL-WALLMNTB-WW
Our Price: Request a Quote
Our Price: Request a Quote

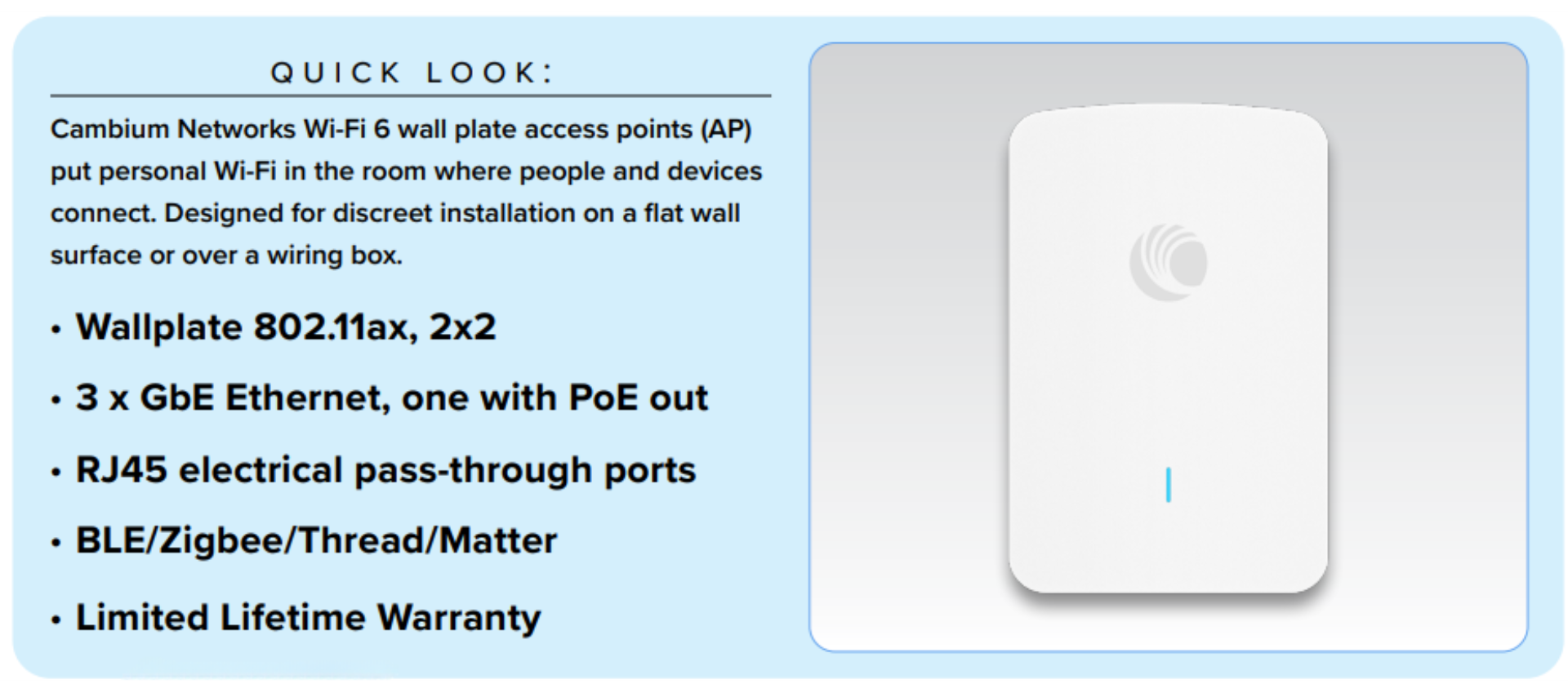

Overview:
Do-Not-Disturb Hotel Design
Hotel guests connect to Wi-Fi before turning on the TV. Wi-Fi is a must-have to stay connected with coworkers, family and social media. With the XV2-22H wall plate AP, the guest will be delighted with a perfect connection to all their devices. Customize the cloud-managed guest access with a fully configurable cloud portal with templates, point and click interface, or HTML CSS
Designed for fast installation
XV2-22H install quickly over a standard wiring box, or to other boxes and surfaces using the optional mounting adapters. XV2-22H has three gigabit Ethernet ports. All ports support 802.1Q VLANs, IGMP, switched virtual interface layer 3 routing, DHCP, and firewall. Deliver 10 watts of operating power to an external device such as a VoIP phone, an in-room IoT hub or even another AP. VLAN and IP segmentation allows secure connections to a TV set-top box, laptop, printer, or any networked device
IoT Ready
Integrated 802.15.4 multi-functional radio supports either BLE, Zigbee, or Thread. Easily integrate with popular Zigbee based door access control systems or temperature control or enable BLE for close point of presence location services
CLOUD-MANAGED ACCESS
cnMaestro X is a simple, yet sophisticated cloud-first, next generation network management solution for Cambium Networks wireless and wired solutions. cnMaestro X offers elastic scalability and single-pane-of-glass management to deliver secure, end-to-end network and wireless lifecycle management with zero-touch provisioning, monitoring and troubleshooting capabilities. It simplifies operations and ongoing maintenance.
- Single console for your entire Cambium network – Wi-Fi, Switching, Fixed Wireless
- Simple and easy-to-navigate user interface for fast time-to-productivity
- Powerful troubleshooting tools for drill down and rapid problem resolution
- Flexible integration via APIs and Webhooks for third party extensibility and customization
- Includes Cambium Care Pro software support with 24x7 L2 engineer access and all software updates for cnMaestro and managed devices
Features:
Specifications:
| Access Point Specifications | XV2-22H |
|---|---|
| Regional Wi-Fi Bands |
US-FCC: Ch 1–11, 36–64, 100–144, 149–165 ISED Canada: Ch 1–11, 36–64, 100–116, 149–165 EU-ETSI: Ch 1–13, 36–64, 100–140 ROW: Ch 1–13, 36–64, 100–144, 149–177 Individual country limits apply. Please contact sales for country-specific regulations. |
| Radios |
1 × 5 GHz radio (802.11ax Wi-Fi 6), 2×2:2 1 × 2.4 GHz radio (802.11ax Wi-Fi 6), 2×2:2 1 × 802.15.4 or 1 × 802.15.1 IoT transceiver (multi-protocol) SU-MIMO / MU-MIMO: 2 streams |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
| SSID Security | WPA3-SAE, WPA3-Enterprise, WPA2 (802.11i), WPA2 AES, WPA2 Enterprise (802.1x/EAP), WPA PSK, Open |
| Max PHY Rate |
2.4 GHz radio: 574 Mbps 5 GHz radio: 2402 Mbps |
| Ethernet |
1 × GE WAN 2 × GE LAN PoE Out (up to 10W) |
| USB Port | No |
| Antenna |
Internal omni-directional 2.4 GHz: 4.47 dBi 5 GHz: 5.56 dBi IoT Antenna Gain: 5.18 dBi |
| Max EIRP |
2.4 GHz: 30 dBm 5 GHz: 28 dBm (EIRP limited by country regulations) |
| WLAN Capacity |
16 WLAN profiles per radio 128 clients per radio |
| Power |
802.3af or 802.3at powered device Typical load (no power out): 10W Typical load (with 10W power out): 20W |
| MTBF |
3,648,451 hours @ 25ºC 2,125,972 hours @ 40ºC |
| Dimensions (mm / in) | 160 × 105 × 32 mm (6.3 × 4.1 × 1.26) |
| Weight | 417 g (0.92 lb) |
| Security | Kensington lock slot, secure bracket |
| LEDs | Tri-color status LEDs |
| Ambient Operating Temperature | 0ºC to 40ºC (32ºF to 104ºF) |
| Storage Temperature | -40ºC to 70ºC (-40ºF to 158ºF) |
| Humidity | 95% RH non-condensing |
| Certifications |
802.11u, HotSpot 2.0, Passpoint 3.0, 802.11 a/b/e/g/i/k/n/r/u/v/w/ac/ax, PP2.0 FCC, IC, ETSI, CE, EN 60601-1-2, IEC60950, IEC62368 |
| Network Specifications | XV2-22H |
|---|---|
| Management |
Scheduled WLAN On/off by day, week, time of day APIs: RESTful management and statistics API Presence location API Webhooks |
| Authentication |
802.1x EAP-SIM/AKA/AKA’/FAST, EAP-PEAP, EAP-TTLS, EAP-TLS/MSCHAPv2, PEAPv0/PEAPv1 MAC authentication to local database (on AP, on Controller) or external RADIUS MAC authentication fallback to guest portal |
| Encryption | 802.11i, WPA2, WPA3, AES encryption |
| QoS |
802.11e/WMM QoS DSCP/ToS mapping |
| VLAN |
802.11Q, max 4096 VLAN Pooling, RADIUS attribute VID VLAN per SSID, per user |
| Fast Roaming |
802.11r, OKC, cnMaestro assisted roam Sticky Client: Enhanced roaming with thresholds |
| Mesh | Multi-hop (2), either band |
| Channel Selection | Auto RF: Manual or automatic |
| Network |
NAT, NAT logging firewall, DOS protection L2/L3/DNS ACL, DHCP server, DHCP Relay option 82 LLDP, IGMP v1, v2 Integrated WIDS (wireless intrusion detection) |
| Band Steer / Load Balance | Yes |
| Tunnel | L2TPv2, L2GRE, PPPoE |
| Network and RF Management Tools |
Out-of-band RF spectrum analysis RF monitor with channel/noise/interference Wired and wireless remote packet capture ZapD performance tool Rogue AP detection |
| IP | IPv4, IPv6 |
| Management | XV2-22H |
|---|---|
| Interfaces |
HTTP / HTTPS web interface, SSH, Telnet SNMP v1, v2, v3 Syslog, SNMP traps, NTP |
| Deployment | cnMaestro Cloud, cnMaestro on-premises, XMS-Cloud, Standalone AP |
| Services |
Monetized guest portal with design tools HotSpot 2.0 (802.11u, HotSpot 2.0) |
| Accounting |
RADIUS accounting Load balancing AAA servers Dynamic Authorization (CoA, DM) |
| Service Availability | Critical network resource monitor with SSID shutdown |
| Captive Portal (via cnMaestro) |
Portal features hosted on cnMaestro: Design templates and customization tools Supports 3rd party external portal RADIUS / LDAP / Click Through authentication Active Directory, Google, Facebook, Office 365, OAuth 2.0 Data Rate / Throughput limits, Time duration |
| Captive Portal (via AP) |
Portal features hosted on the AP: Supports 3rd party external portal RADIUS / LDAP / Click Through authentication Data Rate / Throughput limits, Time duration |
Documentation:
Download the cambium networks Enterprise Wi-Fi 6 XV2-22H datasheet (.pdf)
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
