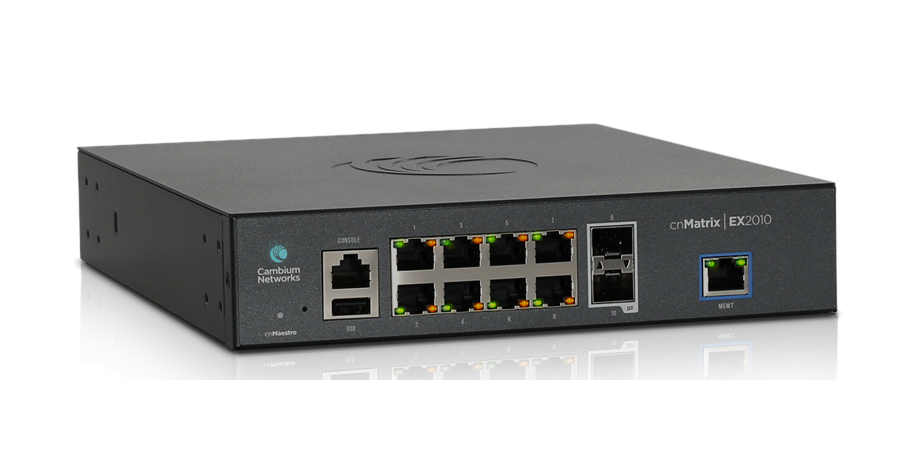

cnMatrix EX2010 Switch
Improve network performance while reducing the time and cost of provisioning and management
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Cambium Networks’ next-generation switching platform offers a cloud-managed, high-performance, feature-rich, enterprise-grade ethernet switching solution.
- Simple and scalable cloud (or on-premise) control with cnMaestro™ Network Management
- Zero-touch deployment that makes installation plug-and-play easy
- Policy-based automation eliminating manual and time-consuming configuration during adds, moves, and changes of network devices
- Enhanced Security with automated device profiling and segmentation
- Unified wired, wireless, security, SD-WAN, and fiber solution as part of Cambium’s ONE Network
The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX2000 Series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports. These switches come with a 5- year limited lifetime warranty.
Benefits:
- Full Line Rate, non-blocking architecture
- Easy and simple, free cloud (or on-premise) management with cnMaestro™ Network Management.
- Zero-touch deployment of switches makes installation easy.
- Policy-based automation eliminates manual and time consuming configuration, during adds, moves, and changes of network devices
- Enhanced security with automated device profiling and segmentation.
- Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
- Unified wired-wireless access solution.
The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX2000 Series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports. These switches come with a 5- year limited lifetime warrant
| cnMatrix EX2010 Specifications | |
|---|---|
| Features | |
| Throughput | 20 Gbps |
| Non-Blocking | |
| PoE enabled ports | n/a |
| PoE power budget units (watts) | n/a |
| 10/100/1000 ports | 8 |
| Uplink ports | 2 SFP |
| Serial console | |
| USB | |
| OOB ports | |
| Rack mount kit | Optional |
| Internal fans | Fanless |
| Maximum routes (Static) | 64 |
| Dynamic routing | 512 |
| LACP/trunking | 8 LAGs/8 links per 9216 |
| QoS priority queues | 8 |
| Maximum IGMP multicast groups | 256 |
| Max PVRST | 32 |
| Cambium Auto Edge | Yes |
| MTBF (hours) | 806,354.10 |
| Power budget | n/a |
| Power supply | AC/Internal |
| Weight | 1.6 kg (3.5375 lb) |
| Dimensions | 21 x 4.4 x 25 cm (8.26 x 1.75 x 9.85 in) |
| LEDs per port | Link/activity Poe |
| Rack mountable | Yes 1U |
| Temperature ranges | -0°C to +50°C (+32°F to +122°F) |
| Operating humidity | +55° at 95% RH |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| cnMatrix All Models | |
| Quality of Service | ACL mapping and marking of ToS/DSCP (COS) ACL mapping to priority queue Honoring DSCP and 802.1p(CoS) Priority queue management using Weighted Round Robin (WRR), Strict Priority (SP) and a combination of WRR and SP ACL mapping marking of 802.1p DiffServ support Traffic shaping/metering |
| Traffic Management | ACL-based inbound rate limiting policies Inbound rate limiting per port Broadcast, multicast and unknown unicast rate limiting Outbound rate limiting per port/queue |
| Security | 802.1x authentication DHCP snooping Neighbor Discovery (ND) inspection Radius/Tacacs/Tacacs+ Secure shell MAC authentication RADIUS authentication/authorization Authentication, Authorization, and Accounting (AAA) Secure copy (SCP) Local username/password |
| Management | cnMaestro (cloud management) DHCP autoconfiguration Embedded DHCP server Industry standard Command Line Interface (CLI) Embedded web management (HTTP/HTTPS) Out of band Ethernet management client/server SSH /SSH v2 SNMP v1v2 System Network Time Protocol (SNTP) Auto Edge / Auto Attach Display log messages multiple terminals Telnet client/server |
| Layer 2 Feature Set | 802.1s multiple spanning tree VLAN, Port, Protocol, 802.1q Auto MDI/MDIX IGMP Snooping V1v2 Per VLAN STP (PVST/PVRST) IGMP Proxy Flow Control per port/per queue Broadcast/Multicast/Unlearned Unicast (Storm Control) Ping/TraceRoute/ICMPv6 Bpdu guard, Root Gard LLDP/LLDP Med Port Mirroring: port based, ACL based, VLAN based Link Aggregation Groups (Static/LACP) Jumbo frame support BPDU filtering DoS Protection (Port, CPU) |
Documentation:
Download the cambium networks cnmatrix switches datasheet (.pdf)
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
