Cambium Networks cnMatrix EX3030RM-P
The cnMatrix™ series of fully managed Ethernet switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security.

Cambium Networks cnMatrix EX2010

Cambium Networks Products

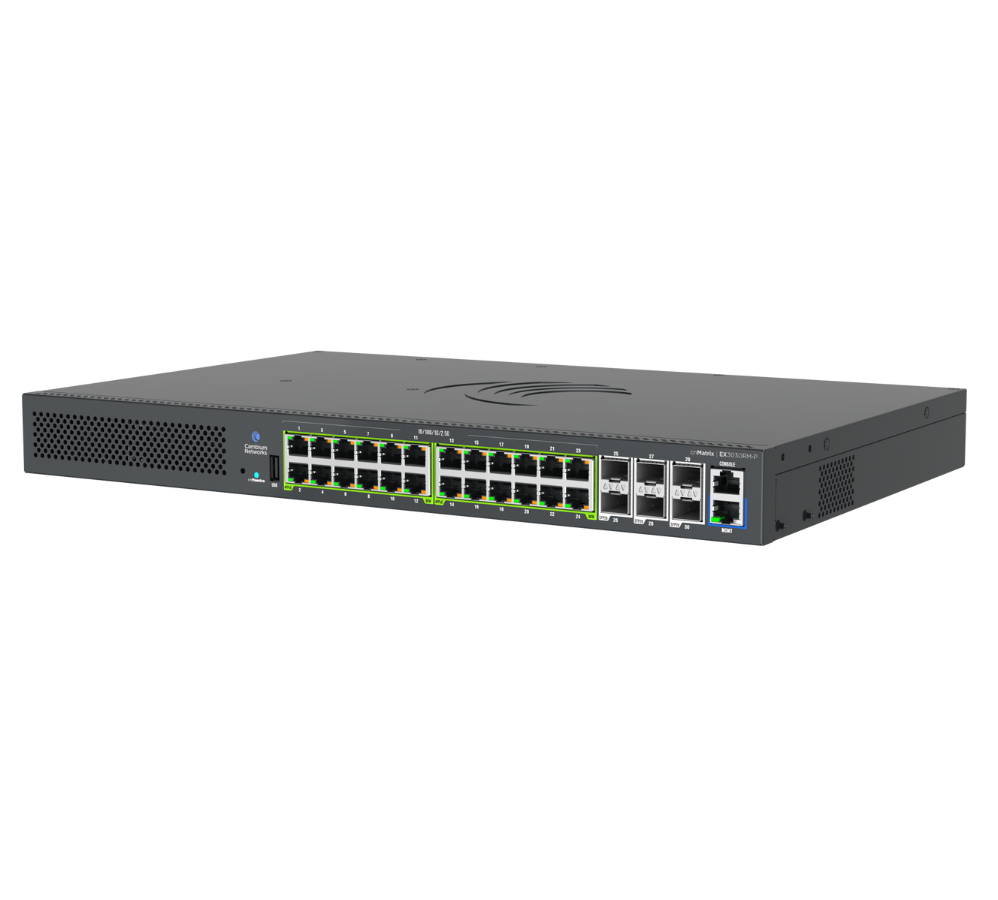

cnMatrix EX3030RM-P
24 2.5G/1G access ports, 6 x 25G SFP28 uplink ports, 90W PoE max power per port
#EX3030RM-P
Our Price: Request a Quote

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

cnMaestro

The cnMatrix™ next-generation switching platform offers a high-performance, secure Ethernet switching solution to support a wide variety of applications. The platform provides:

  • Simple and scalable cloud (or on-premise) control with cnMaestro™ Network Management
  • Zero-touch deployment that makes installation plug-and-play easy
  • Policy-based automation eliminating manual and time-consuming configuration during adds, moves, and changes of network devices
  • Enhanced Security with automated device profiling and segmentation
  • Unified wired, wireless, security, SD-WAN, and fiber solution as part of Cambium’s ONE Network

The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. Depending on the model, the cnMatrix EX3000 Series offers SFP+ (10 Gbps) or SFP-28 (25 Gbps) fiber uplink ports. The series also comes with dual removable power supplies and features up to 90W of PoE per port. These switches come with a 5-year limited lifetime warranty.

Specifications:

Specification EX3030RM-P
Throughput 420 Gbps
Forwarding Rate in Mpps (64 Byte Packets) 120
2.5G / 1G Ports 24
PoE+ Enabled Ports 802.3af/at/bt (90W) 24
Power Supply CRPS dependant
Max Switch Power (With Traffic) 69.5W
MTBF (Hours) 276,875.99
Weight 5.06 kg (11.16 lb)
Dimensions (cm/in) 4.4 x 28 x 44 cm
CPU Speed 1.2 GHz
LEDs Per Port Link/Activity, PoE
PoE+ Power Budget CRPS

Documentation:

Download the cambium networks cnmatrix switches datasheet (.pdf)
